TTE® as a base course layer stabilisation for paving stone and slab coverings
Using TTE® as a base course layer stabilisation one saves the costs of extensive base course layers. TTE® is the ideal solution above all for poor load carrying capacity or inhomogeneous building ground. The high load-bearing geo-grid forms a rigid load distributing substrate and guarantees permanent flatness of the paving stone and slab coverings and also ensures a high drainage performance.
800 x 400 x 60 mm, ca. 8.6 kg/piece (ca. 27 kg/m2) Web thickness: 14 / 15 mm
Special features
- effective base course layer stabilisation / replacement for poor and inhomogeneous building ground
- TTE® secures the flatness of the paved surface: no sagging / setting of the cover layer is possible
- no twisting / no tipping of the paving stones on an incline
- optimal vegetative conditions for greenable paving covers for realisation as a TTE® Green construction principle
- a higher ecological value, permanent and better dewatering performance than conventional “eco-paving stone construction principles“
Example areas of application
- Reinforcement of roads and pathways
- Terraces and pathways
- Entrances
- Courtyard fortifications
- Place situations
TTE® for paving stone and slab coverings

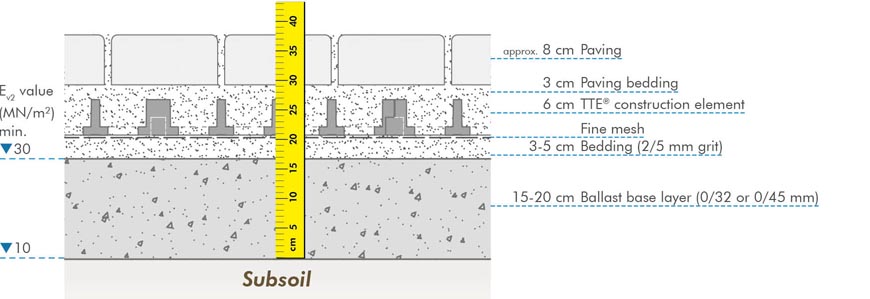

For example TTE® Construction Principle 2 (passenger car and occasional heavy lorry traffic)
The TTE® construction principle varies according to the loading and intensity of use
Simple and quick - TTE® as a base course layers stabilisation system / replacement
For example TTE® Construction Principle 1
